TDA04H0SB1
Manufacturer:
C&K Components
Mfr.Part #:
TDA04H0SB1
Datasheet:
Description:

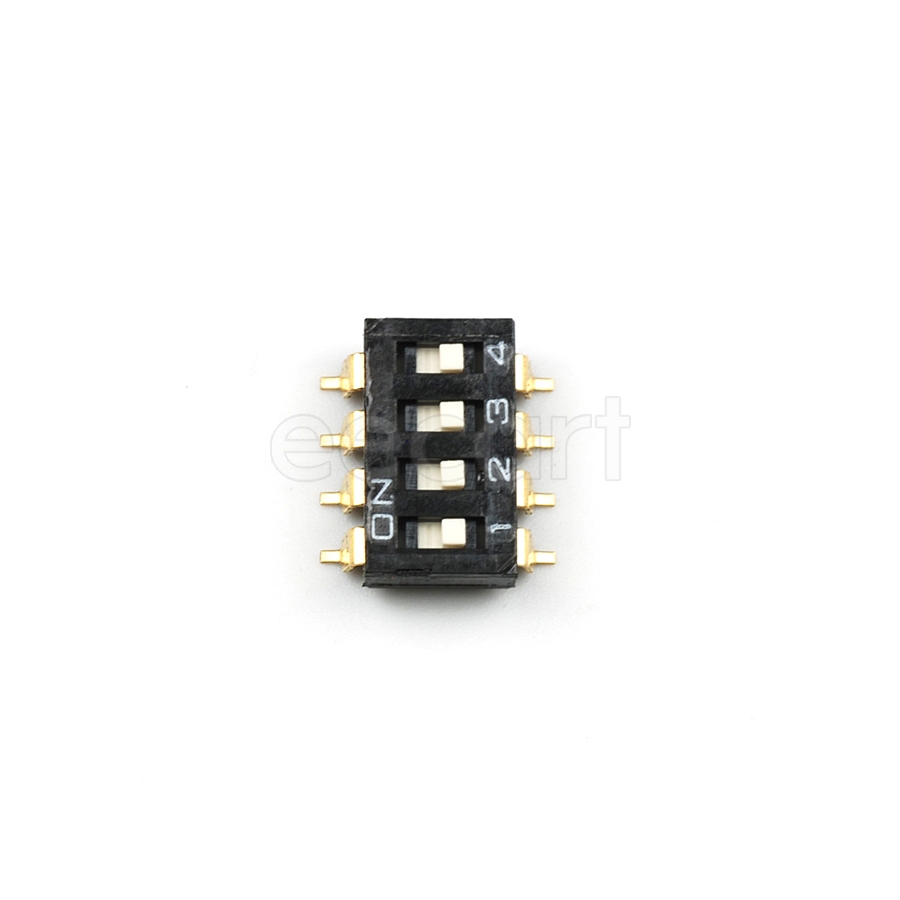

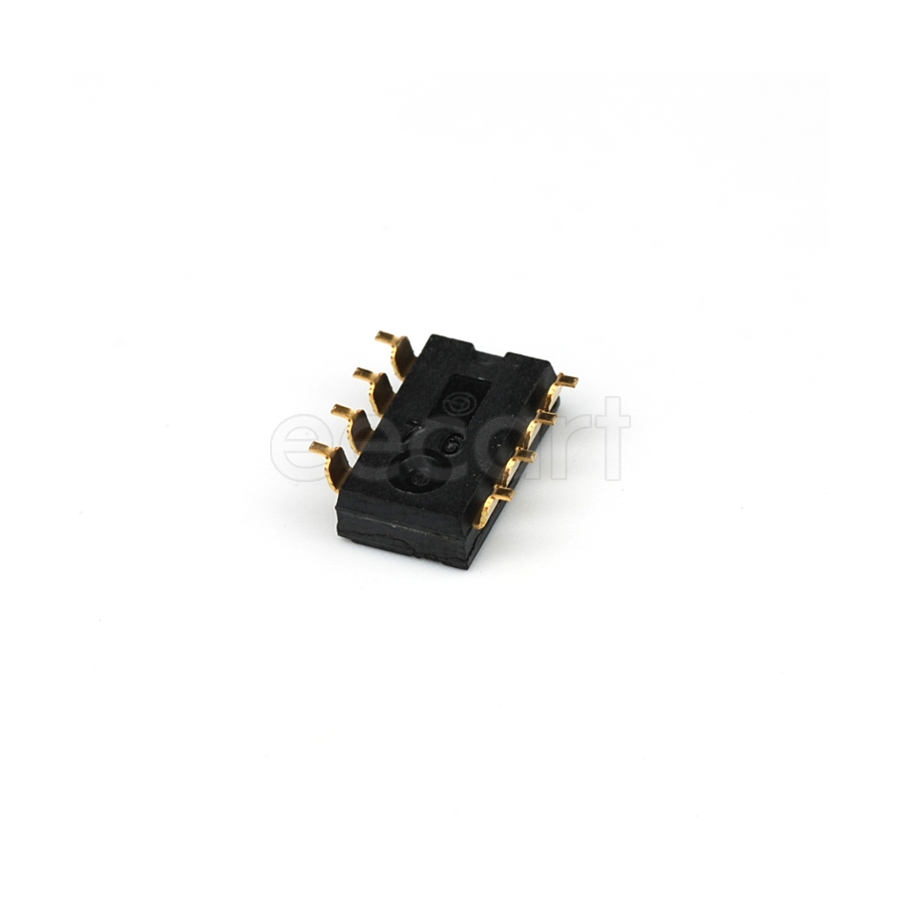

DIP Switches SMD/SMT SPST Number of Positions:4 Current Rating:25 mA Slide (Standard)
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Height - Seated (Max) | 2.3 mm |
| Length | 6.1976 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Circuit Type | SPST |
| Packaging | Tube |
| Depth | 8.12 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Lead/Base Style | Gull Wing |
| Pitch | 1.27 mm |
| Terminal Pitch | 1.27 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Body Material | Polyphenylene |
| Actuator Length | 0 m |
| Throw Configuration | SPST |
| Number of Positions | 4 |
| Contact Resistance | 100 mΩ |
| Electrical Life | 1000 cycles |
| Actuator Material | Polymer |
| Mechanical Life | 1000 cycles |
| Contact Current Rating | 25 mA |
| Actuator Type | Slide (Standard) |
| Washable | Yes |
Stock: 2233
Distributors
pcbx
pcbxUnit Price$1.75260
Ext.Price$1.75260
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.75260 | $1.75260 |
| 10 | $1.47048 | $14.70480 |
| 25 | $1.44569 | $36.14225 |
| 50 | $1.16494 | $58.24700 |
| 100 | $0.93871 | $93.87100 |
